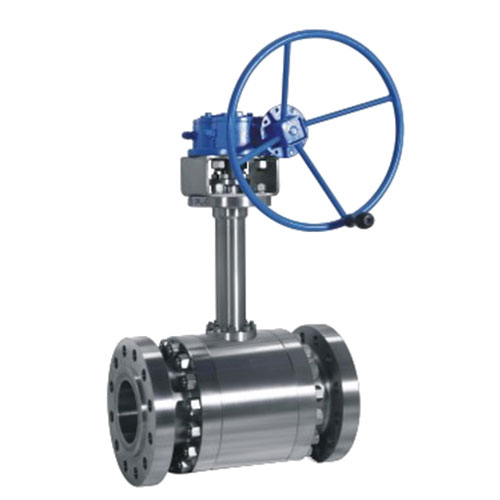

Ultra-low temperature floating ball valve

Product Introduction
The FOKASI ultra-low temperature floating ball valve adopts a two piece split design with a side-mounted fire-safe structure, featuring excellent sealing performance, low torque, easy operation, and a long service life. It is suitable for pressure ranges from CLASS150 to CLASS1500 and temperature ranges from -196°C to 180°C, making it particularly applicable for liquefied natural gas, liquefied petroleum gas, air separation, and other low-temperature industries.

---

Size Range: 1/2"-12"（DN15-DN300）
Pressure Rating: ASME CLASS150-CLASS1500 (PN10-PN260)
Temperature Range: -196~180℃
Connection Type: Flange，Butt welding
Design Standards: ASME，API，ISO，BS，MSS，SHELL，JIS，DIN，GB，JB
Drive Mode: Manual, Gearbox, Pneumatic, Electric, Hydraulic, Gas-Hydraulic Linkage, Electro-Hydraulic Linkage
Body Material: Low temperature carbon steel, Stainless steel
Seat Material: PCTFE
